SK-4 Coffee Packaging Machine
Max Speed：up to 200 pcs/min
Filling Accuracy：±0.2g
- Top-tier production capacity with consistent accuracy

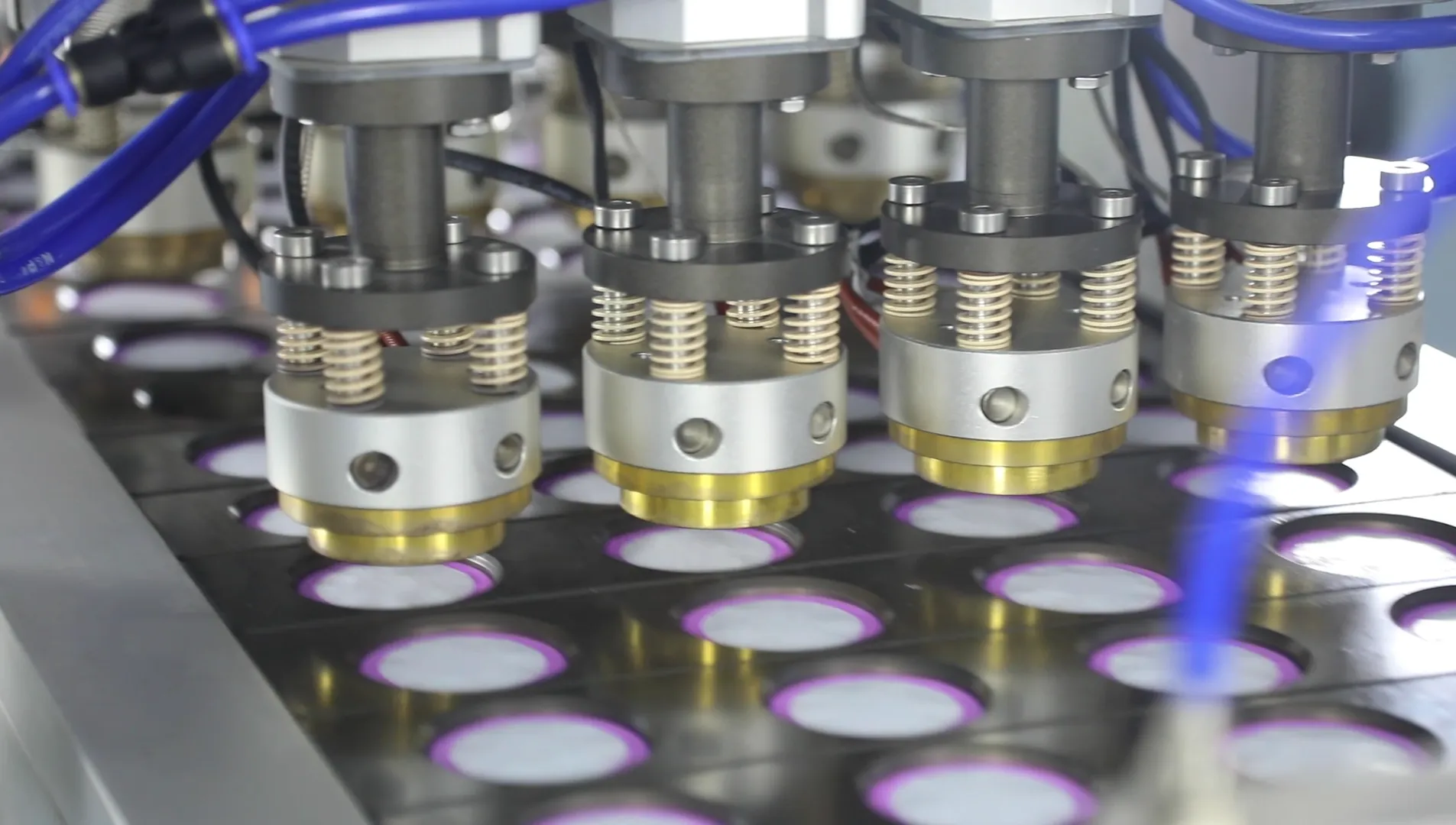

- Food-grade Stainless Steel, Schneider Electric System, Pure Copper Sealing Heads, Hi-win Guideway, and Inline Weighing
- Branded servo motor and sensors guarantee the precise positioning, filling, and sealing.
- Horizontal structure ready for connecting with cartonning machines
Features
- Capable of producing Nespresso, Lavazza Blue, Dolce Gusto, and other capsule formats through mold changeover.
- Triple nitrogen flushing process ensures maximum freshness and extended shelf life of the coffee capsules.
- Uses globally recognized brands for electrical and pneumatic components (e.g., Schneider, Siemens, Omron).
- Automatic counting of total capsules and preparation for downstream packaging.
- The automatic overturning device quickly discharges the current batch and prepares the next one for filling and sealing.
- Equipped with 4 cavities in line delivering high output with exceptional consistency superior to general filling machines.
- Easily integrates with a cartoning machine, enabling a smooth upgrade to your manufacturing line for enhanced efficiency.
- High-resolution servo system ensures pinpoint accuracy, while the in-line weighing system offers real-time weight monitoring for consistent filling and quality control.

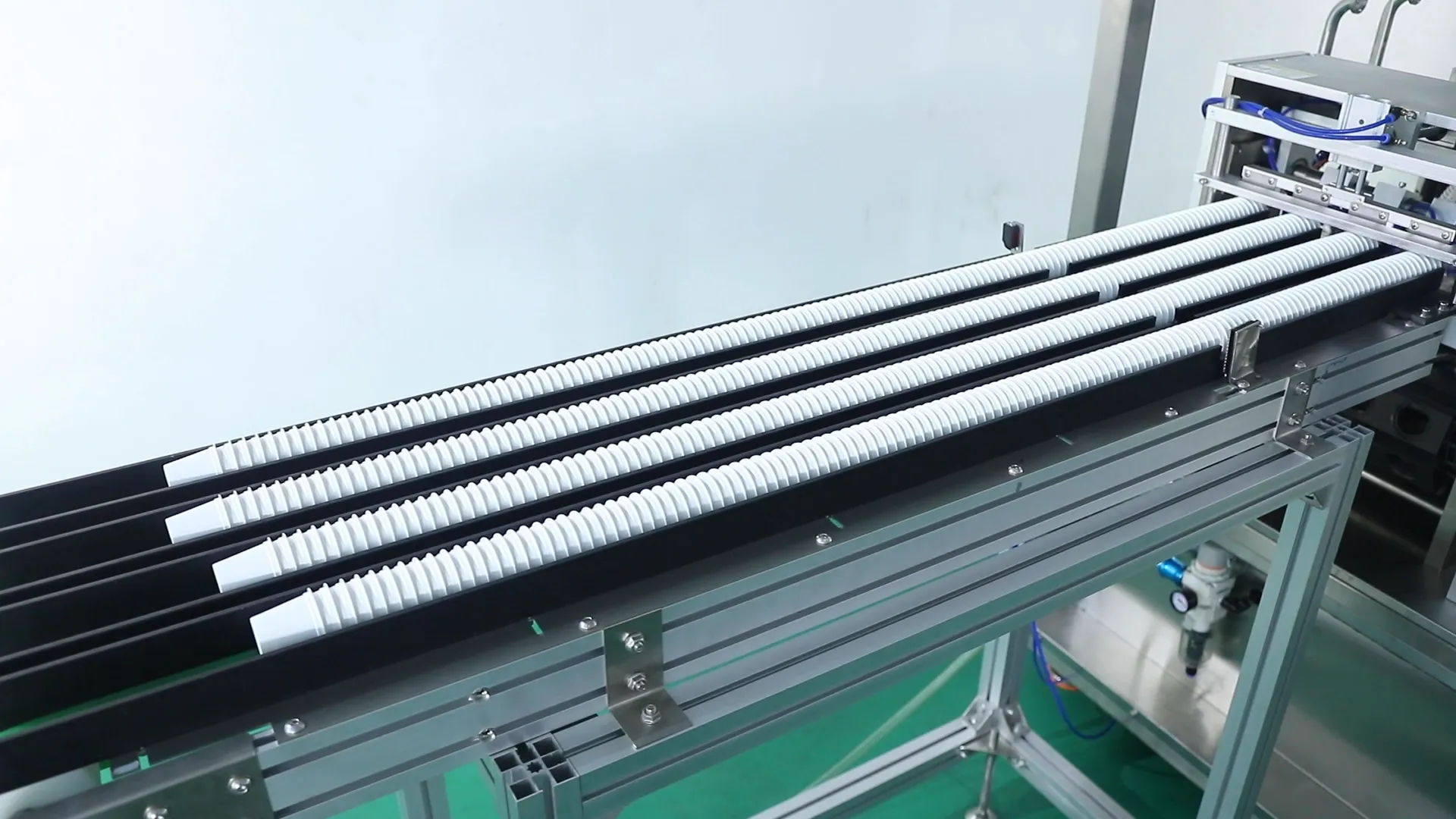

- Capsule sorter and lifting and conveying system greatly save labor costs; The high-quality pneumatic components make the air circuit of the machine run stably

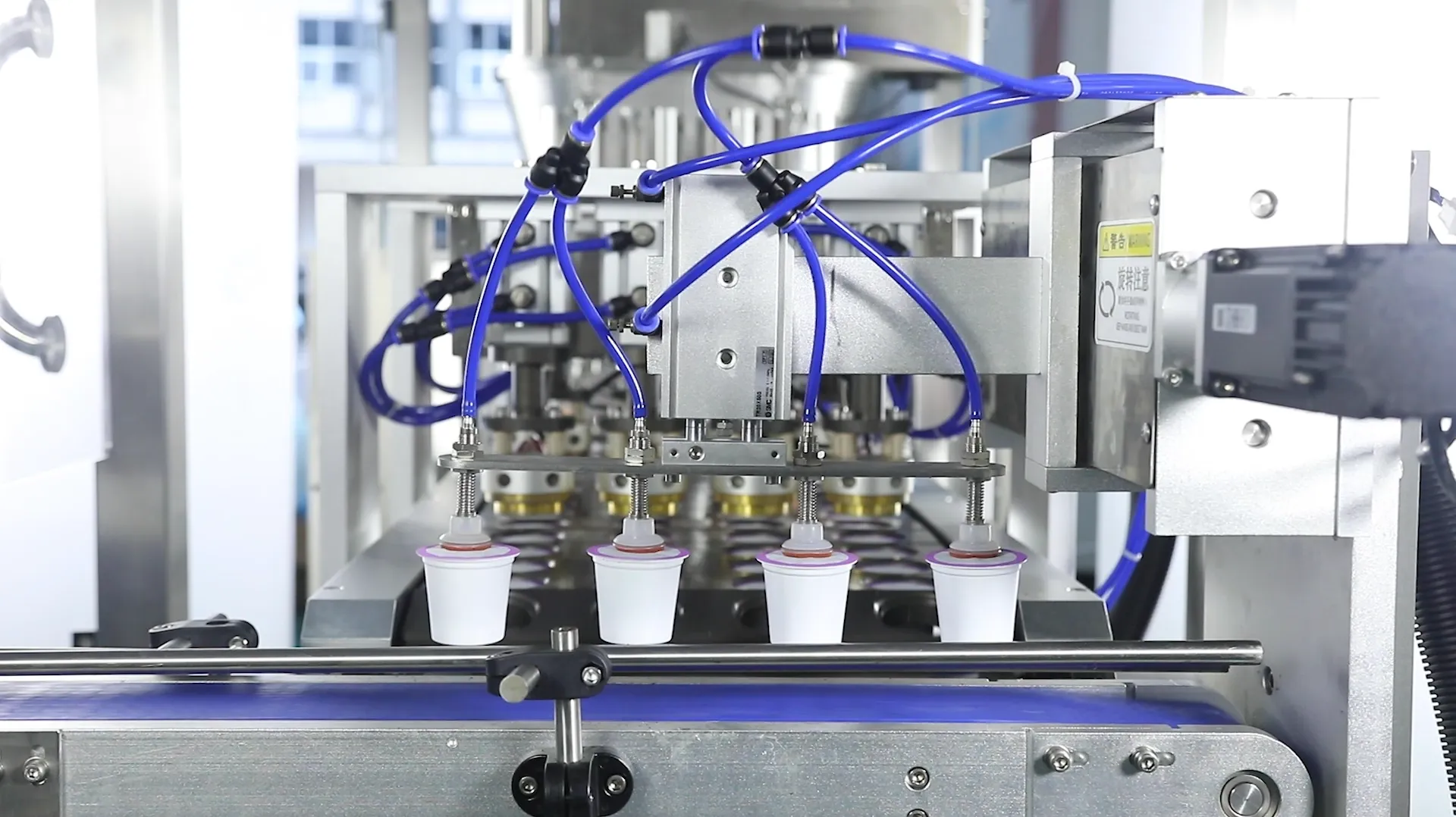

- The peristaltic pump drop filling device is ready for adding liquid flavors in the capsule in the future
Specifications
| Capacity | 200cpm |
| Filling head | 4 |
| Measure way | Auger filling |
| Filling range | 5-15g(adjustable) |
| Power supply | 1.2kw |
| Sealing material | Die-cut foil lid |
| Optional equipment | Air compressor |
| Air Consumption | 0.3m³/ min |
| Nitrogen Consumption | 0.25m³/H |
| Noise | <70DB |
| Air pressure needed | 0.6--0.8Mpa |
| Overall dimension | 3400 (L) X 1800 (w) X 2600 mm(H) |
| Weight | 2000KG |
| Packing Way | Wooden Case |
Advantages

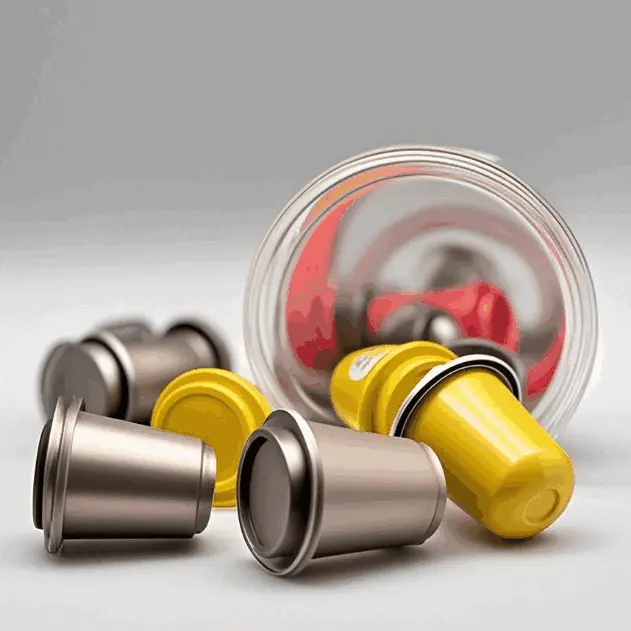

Diverse Cup Styles the SK-4 Can Process
Related Powder Materials
Not stopping at processing coffee products, the SK-4 can also be used for different powdered products with equally consistent results.
Coffee Powder
Cocoa Powder
Soybean Milk Powder
Protein powder
Matcha
Spice
Pack and Seal Sauces
The SK-4 isn’t limited to packing and sealing powdered products, as it can be modified to handle sauces of various consistencies.
Why Choose This Machine?
The SK-4 is a fully automated, high-capacity machine designed for producing a wide range of Nespresso-compatible coffee pods. With its ability to handle multiple product types and capsule formats, the SK-4 offers unparalleled versatility and efficiency. Its advanced features, high-quality components, and user-friendly interface make it an ideal choice for modern coffee production.
