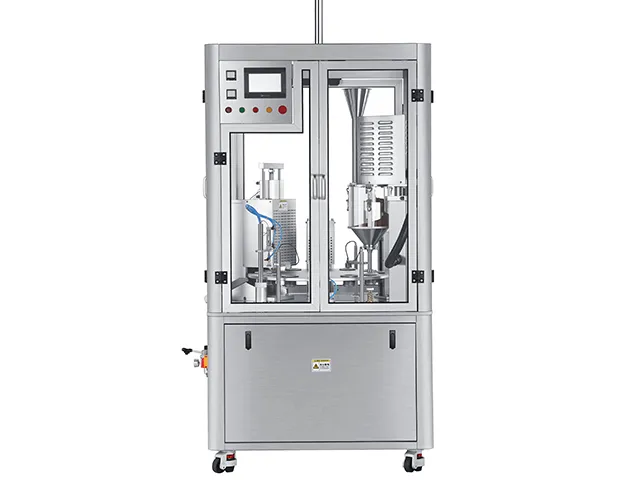

SN-1 Coffee Packaging Machine
Nitrogen gas in capsule: Up to 99.9%, Keep coffee fresher
Longer. Advanced nitrogen flushing technology. every capsule is sealed under a nitrogen-rich environment—preserving your coffee’s flavor and aroma for up to 12 months
- SANEU's exclusive technique realizes the nitrogen content in pods up to 99.9% Nitrogen tank or generation supply
- Widely applied for Nespresso, K-cup, Vertuo,Lavazza, and other coffee capsules
- Capable of filling a variety of powders like Freeze-dried powder,coffee powder, milk tea powder
- High Precision: Features ±0.1-0.2g filling accuracy for consistent product quality
Features
- Equipped with SANEU's exclusive 99% nitrogen-filling device that preserves freshness and aroma of your coffee capsules maximumly.
- Designed with a compact footprint, making them suitable for facilities of all sizes, even those with limited space (less than 20m²).
- Siemens touchscreen and PLC working seamlessly ensure user-friendly operation and functionalities.
- Precision Servo System guarantees precisely cup loading, powder filling, sealing, and output pushing out.
- Modular design allows for smooth changeover when packaging other-sized coffee capsules.
- Allowing for filling and sealing liquids through installing pistion pumps or cermaic pumps.
- Output capacity could reach 2,100 capsules per hour when the nitrogen flushing function turned off.
Specifications
| Number of Filling Heads | 1 |
| Production Capacity | 1800-2100 pcs/hour |
| Filling Method | Auger Screw Filling, Mitsubishi Servo Motor |
| Filling Range | 5-15g |
| Power Supply | 220V 50-60HZ, single-phase |
| Sealing Material | Aluminum Die-cut Lids |
| Optional equipment | Air Compressor |
| Air Consumption | 0.3m ³/min |
| Nitrogen Consumption | 0.25 m³/H or 119ml/time |
| Noise | ≤70DB |
| Required Air Pressure | 0.6-0.8Mpa |
| Dimension | 12000 mm(L)x1200 mm (w)X2100 mm (H) |
| Weight | 620KG |
| Delivery Packaging | Wooden box |
Advantages
Related Powder Materials
Not stopping at processing coffee products, the SN-1 can also be used for different powdered products with equally consistent results – Tea, Coffee, Supplementary, Spice, Sguar…
Pack and Seal Sauces
The SN-1 isn’t limited to packing and sealing powdered products, as it can be modified to handle sauces of various consistencies.
Why Choose This Machine?
An innovative automatic rotary coffee capsule packaging machine that could be applied in filling and sealing Nespresso, K-cup, Lavazza, and other-sized coffee capsules. A fully enclosed exterior design with food-grade 304 stainless steel guarantees food production safety. The space-saving structure still incorporates cup storage, loading, filling, and sealing, which becomes an ideal choice for small-medium specialty coffee producers to expand new businesses.
