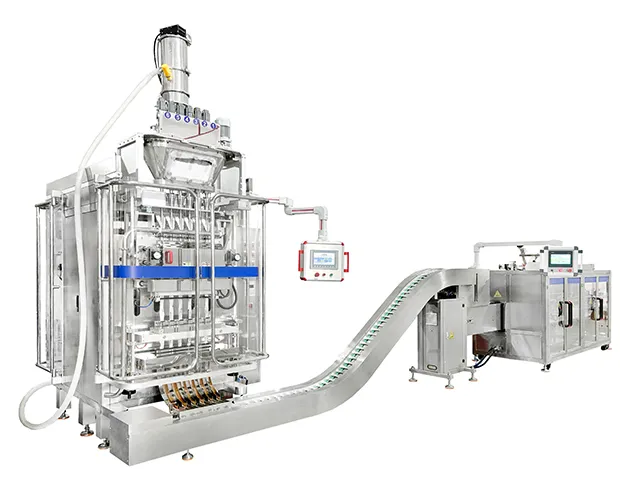

820 Stick Packaging Machine
Capacity：30-45 cycles/min
Sealing Type：Back sealing/stick bag
Sachet Size：45-180mm L , 17-80mm W
- Constructed from 304 stainless steel for long-lasting use and suitability with various products.
- Allows precise filling of liquids and pastes using peristaltic, piston, or ceramic pumps.
- Equipped with Siemens PLC control for stable and efficient machine operation.
- Efficiently handles wider films and larger content volumes, making it ideal for large-scale stick pack packaging.
Features
- Independent Temperature Control System: Adopts an independent temperature control system for accurate sealing, ensuring beautiful and smooth packaging every time.
- Servo Motor Metering: Utilizes independent servo motor metering for precise control of the filling process, enhancing the accuracy and consistency of packaging.
- User-friendly Touch Screen Interface: Features a touch screen interface that allows for easy operation and quick adjustments, enhancing user experience and efficiency.
- High-Speed Production: Capable of high-speed production with a stable working process, ensuring that the machine can keep up with demanding production schedules.
- Integration with Automation Systems: Can be seamlessly integrated with subsequent dosing lines and automatic cartoning machines, enabling a fully automated production line for enhanced productivity and efficiency.
- Diversified Filling Solutions: Auger, volumetric, or multi-head weigher for powders, granules, and solids; and peristaltic, piston, or ceramic pumps for liquids and pastes.
- Smart Adjustment System: The servo motor-driven film pulling, eye mark detection, and sealing alignment are all automatically managed through the intuitive touchscreen. This system offers automatic film correction, stores product formulas, and enables fast product changeovers—eliminating the need for manual adjustments.
- Higher Output Capacity and Larger Content Volume: Supporting the maixmum of 820mm film, ideal for high-speed production of larger stick packs.
Specifications
| Lane number | 4-12 |
| Power Filling | Auger filling by servo motor |
| Granule Filling | volumetric cup/weigher |
| Lquid Filling | Peristaltic pump/Piston pump/Ceramic pump |
| Capcity | 30-45 cycle/min |
| Film Width&Thickness | Max:820mm,0.06-0.01mm |
| Sachet Size | L:45-180mm W:17-80mm |
| Sealing Type | 4 side sealing |
| Cutting Type | 1.Straing cutting 2.Zig zag cutting 3.Continuous cutting |
| Power supply | 0.8MPa 0.8mm³/6.5KW |
| Voltage | AC380V Three phaase,AC220V Single phase,50-60HZ |
| Size & Gross Weight | 1600X2100X2600MM 1200Kg |
Automatic Powder Packing Machine Designed for Maximized Output
How It Works
Feeding powder material
Printing dates on the film
Forming the stick bags
Filling the bags with material
Sealing the stick packs
Cutting and finishing
Pushing the packs on the conveyor
Filling carton packaging with stick packs
Packaging the Carton
Line Layout
The powder stick pack machine is assembled with careful calibration to ensure optimal packaging output.
Application
Spices Powder
Drinking Powder
Sugar Granule
Natural Gel
Liquid Concentrate
Organic Seeds
Natural Oil
Seasoning Sauce

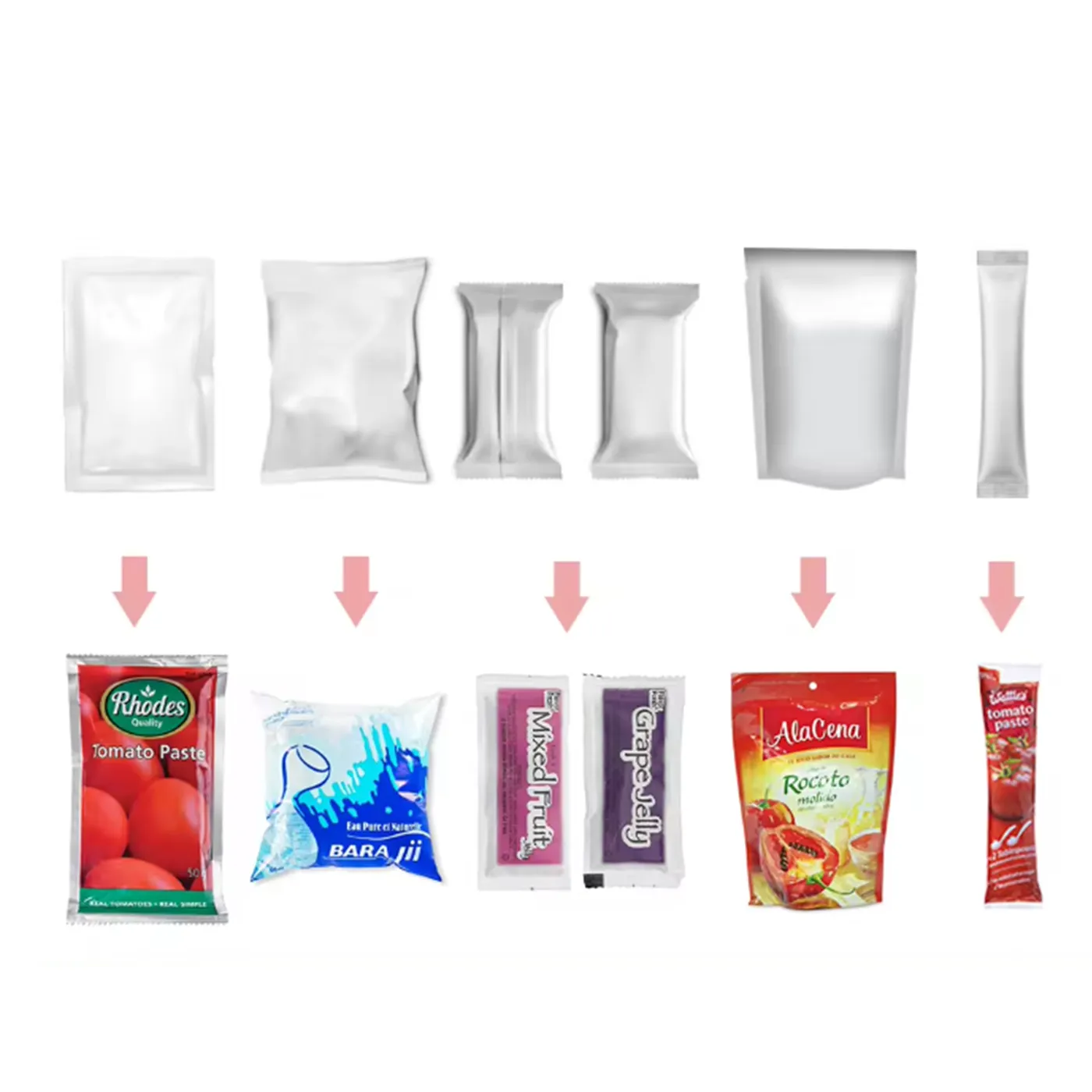

Stick Bag Type
