Nit SX-4 Alu Nespresso capsule sealing machine with Nitrogen Flushing


Nit SX-4 Alu Nespresso Nitrogen system sealer is a submachine with Nitrogen flushing function.  Nitrogen covers in the cup.  Finish nespresso capsules are plump,  same with Original nespresso capsule


Item No.: Nit SX-4

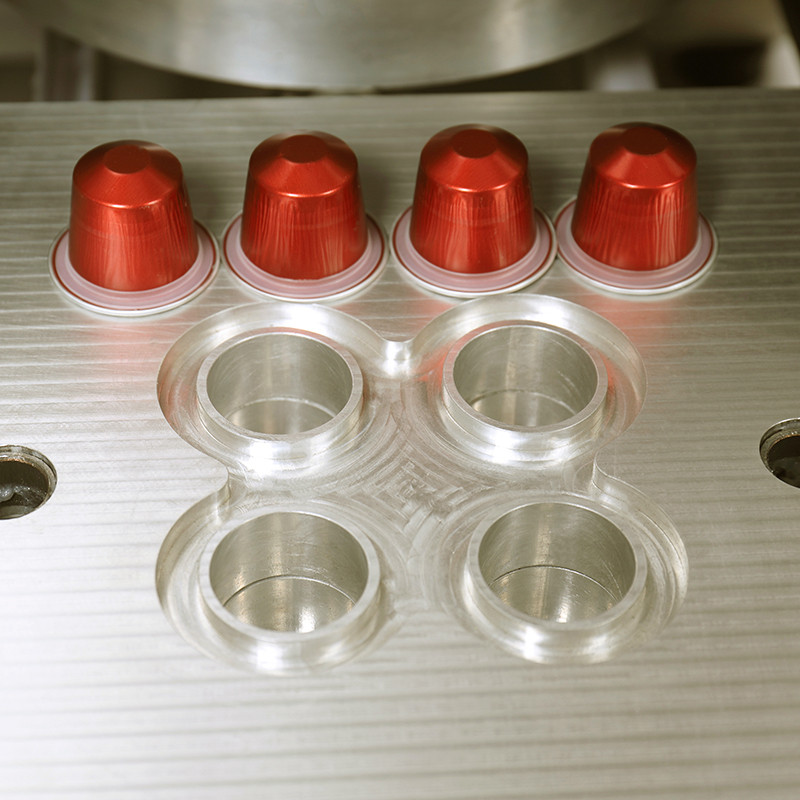

Tray Cavity: 4 Cavities, customization
Type: Sealing Machine

Forming Species:Melt Molding
Automatic Grade: Automatic

  • Product Detail

Automatic Nespresso capsule sealing machine with Nitrogen


SANEU focus on coffee capsule packaging, Nit SX-4 Nitrogen System Sealer adopts auto intelligent heat sealing system, Sealing Temperature 190--300 °C, power supply 220V,50Hz,720W.  Compact and unique structure. Stainless steel frame and well-known electrical elements. manual polishing on machine frame.

Nitrogen flushing process: 1. Nitrogen chamber close.  2. Pump out air in Chamber.  3.  fill nitrogen into chamber. 4. Capsules sealing. 5. sealing heads go up. 6. Chamber go up




Specifications


Aluminum Cup Diameter 37mm
Foil Lid Diameter 34.5 mm
Cavities Number 4
Heating Head 4 single heads
Sealing Way  Auto intelligent heat sealing
Capacity 300--500 pcs/h
Sealing Time 2 S
Sealing Temperature 190--300
Driven Type Electrical+ Pneumatic drive
Power Supply 220V,50Hz, 720W
Air Source Demand 500 ml/min
Overall Dimension 920*530*980mm
Gross Weight 150KG
Packing Way Wooden Case
Kindly Note:
Machine can be designed for not only alu Nespresso capsule, but also K cup, Lavazza and others on your request.



Electrical elements equipped with machine


Touch screen

Weinview(Colorful)

PLC

Japan Mitsubishi

Cylinder

China brand

Heating tube

Taiwan brand

Temperature control system

China brand

Stainless steel thickness

3 mm, manual polishing


machine working Video



Nitrogen flushing process:

1. Nitrogen chamber close.  2.air extraction in Chamber.  3.  fill nitrogen into chamber.

4. Capsules sealing. 5. sealing heads go up. 6. Chamber go up


About Saneu


Saneu focus on coffee capsule packaging (K cup, Nespresso, Lavazza etc.) and concentrate every corner of machines. We are professional coffee capsule packaging equipment manufacturer.


  • Our business covers 30 countries and regions
  • 60% business from customers' recommendation
  • Our distributors located around the world can provide local service quickly
  • Provide private solutions for different customers needs
